Elara | Factor Bikes

The Factor Elara is a race-focused aero gravel bike. It takes road-derived geometry, with a longer reach and steeper seat tube angle, and pairs it with tight chainstays for quick, precise handling on loose surfaces.

Key features

• True monocoque frame, sub-1,100 g (size M, painted)
• Deeper, stiffer aero full-carbon fork
• Black Inc Aero Gravel Bar AB07 one-piece cockpit with integrated computer mount and internal hose routing
• Drag 5–8% lower than the Ostro Gravel
• Up to 57 mm (2.2") tyre clearance with 1×
• Two in-triangle bottle mounts, top-tube feed port and down-tube storage
• Compatible with 1× and 2× electronic drivetrains from SRAM, Shimano and Campagnolo

Specifications

• Sizes: 49, 52, 54, 56, 58, 61
• Bottom bracket: T47A internal threaded
• Rear hanger: UDH / direct mount
• Trail: 61 mm
• Chainstays: 420–425 mm depending on size

Builds

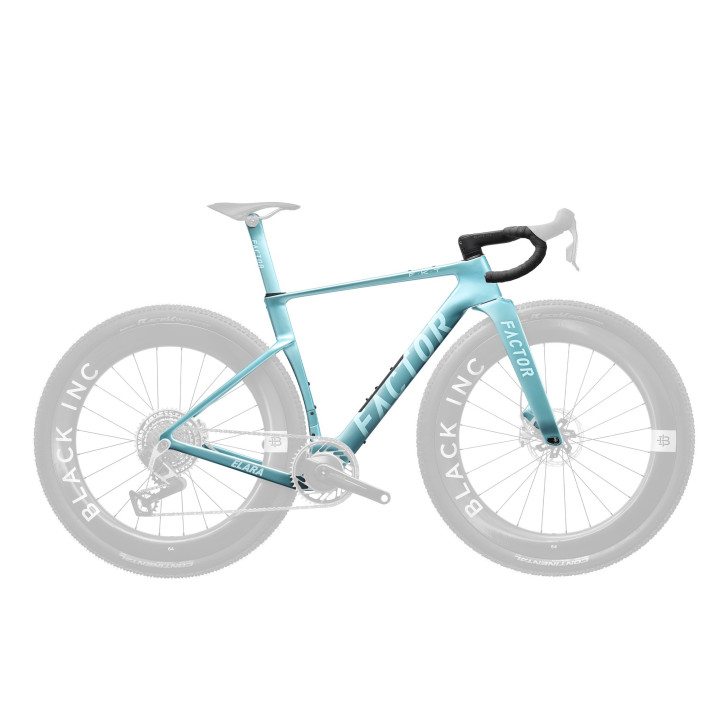

• Frameset – Premium Package: frame, fork and Premium Package components, without groupset or wheels
• BI46 / BI64: the Black Inc wheelset fitted to the complete build (BI64 = Black Inc SIXTY FOUR gravel wheels)
• Complete builds with SRAM Force XPLR, SRAM Red XPLR or Campagnolo Record 13 X, all with power meter
